HF19-GK-SPQ6 LED Optic push High Speed Handpiece KAVO Fit 360 degree Water Adjustor

HF19-GK-SPQ6 LED Optic push High Speed Handpiece KAVO Fit 360 degree Water Adjustor

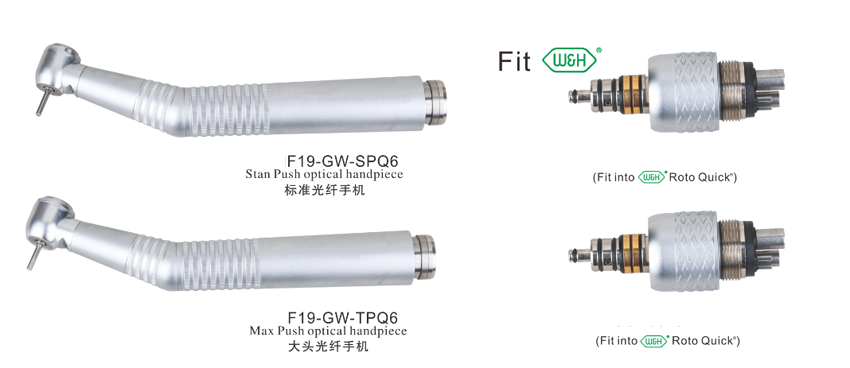

HF19-GW-SPQ6 LED fiber optical dental high speed handpieces with quick coupling fit W&H Roto quick

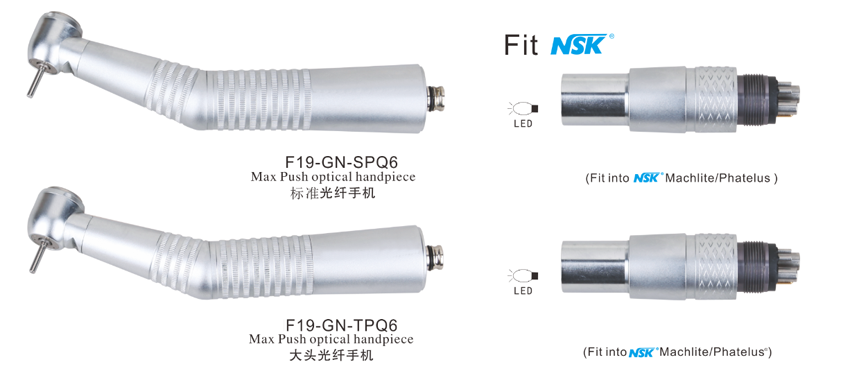

HF19-GN-SPQ6 Fiber Optic handpiece with NSK coupling

HF19-GN-SPQ6 Fiber Optic handpiece with NSK coupling

Technical data:

1.Air pressure: 0.25-0.27Mpa(6 hole)

2.Rotation speed: more than 300,000 rpm

3.Chuck type: push button

4.Bur applicabie: Φ1.59mm~Φ1.6mm×21mm~23mm(diameter×length)

5.Noise: less than 68dB

6.Spray: three way spray

7.shaft roundness:0.001mm

8.Dynamic pulse rate≤0.03mm

9.Spindle chucks power :22N(After 3,500 times)

Features:

>> Sufficient LED white light and long service life,superior brightness,Longevity 10000 hours.

>> Quick coupling is compatible with NSK Machlite/Phatelus .

>> Three way sprays - best cooling and continuous visibility.

>> Bearing are bought from the best quality manufacturer in Germany.

>> Impeller has been dynamic balance by the Germany machine. Enhance the useful life of the handpiece.

>> Can be 135℃ Sterilized.

Adventage

>> Durable light:Imported durable bulb which voltage is 3.3V±0.1V,longevity≥10,000hours.

>> Optic fiber imports transmit light which illumination ≥25,000lx ensures brightness at preparation area.

     The function will not decline even if sterilized by high temperature and pressure.

>> 360° Water adjustor:You can adjust the speed of water just rotate the quick coupling.

>> Quick coupling is compatible with NSK Machlite/Phatelus

>> The LED is fitting in the quick coupling,easy to replace.

>> Stand Push Cartridge

>> Impeller has been dynamic balance by the Germany machine. Enhance the useful life of the handpiece.

>> Three way sprays - best cooling and continuous visibility.

Optical handpiece (6 holes)

 -bulb:LED Light ,Illumination≥25000lux

-Connect optical tubing for handpiece

-three way spray

-chuck type:push button

-Rotation speed:≥300000rpm

-air oressure at the back end of HP:0.25-0.27Mpa

-bur appliable： Ø1.59mm- Ø1.6mmx21mm-23mm（diameterXlength)

- Fit into  NSK Machlite/Phatelus
